Reusing code

Programming

15 min

1

We have already learnt how the line following sensor works, and that your robot can respond to it by controlling the motors. You will probably create a bigger and more complex program quite fast. You will also notice that you will be using the same blocks over and over again. In this workshop you will learn how to reuse these.

2

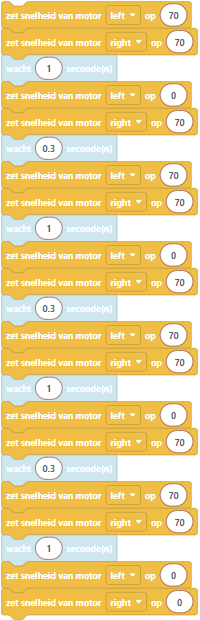

In the ‘Drive’ workshop you have tried to let your robot drive in square. Your code will probably have looked someting like this code.

You probably noticed that you are doing the same thing over and over again. You can easily reuse these blocks by adding a loop around it.

3

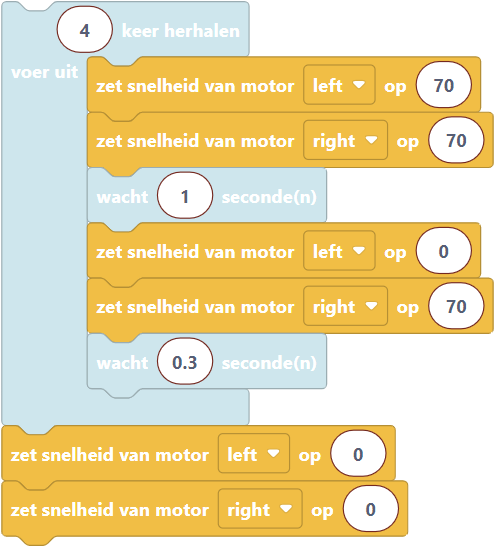

A loop makes sure your code is executed a certain amount of times. With that we can replace the original code, and make it more compact.

This already looks way more clean. It is also way easier to modify in case you and the robot to drive 2 quares. But it is also less prone to errors, since there is less code that could go wrong.

4

But we are still using three blocks to just drive straight, and another 3 to just turn around. These might be things that could be useful in other scenarios as well. When you would like to reuse some code, you can create a so called ‘function’ for this.

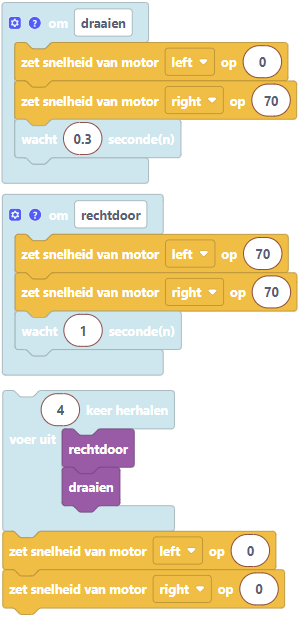

By adding this function block, we can easily make this even more easy to understand. Now we can create one function for driving straight, and one for turning around.

5

You can also extend these functions so it can drive forward, backward, turn clockwise and anti-clockwise.
